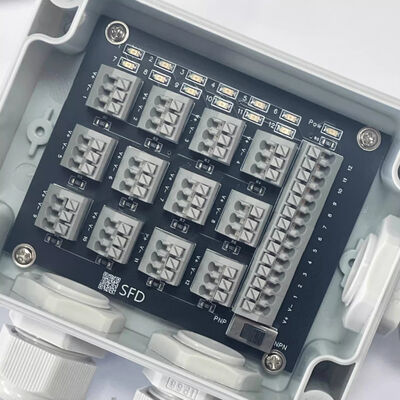

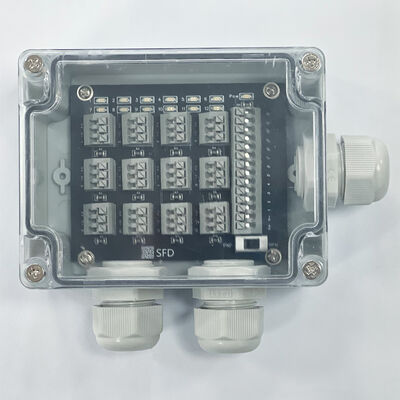

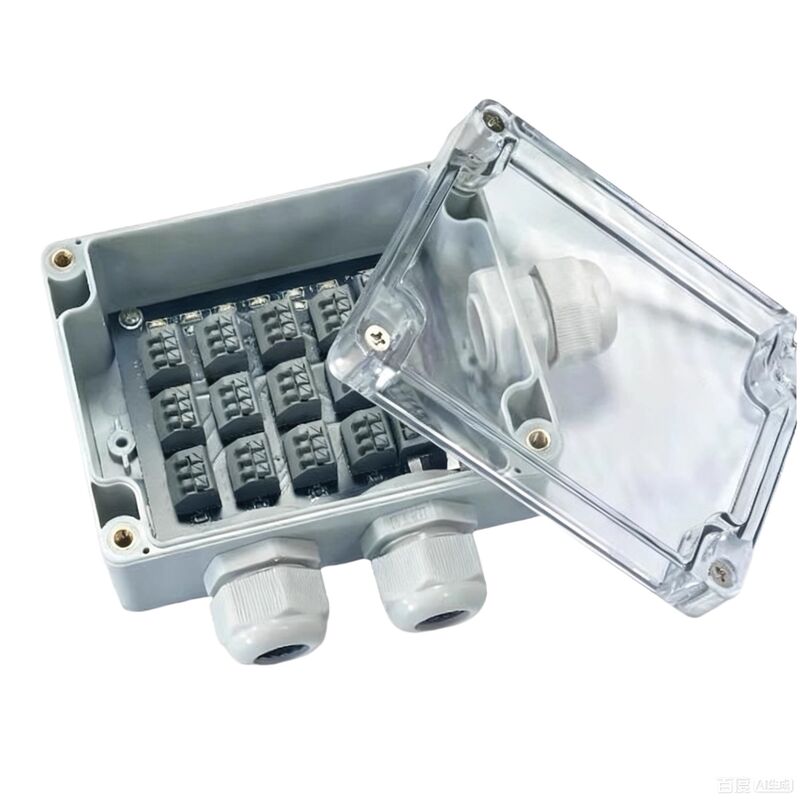

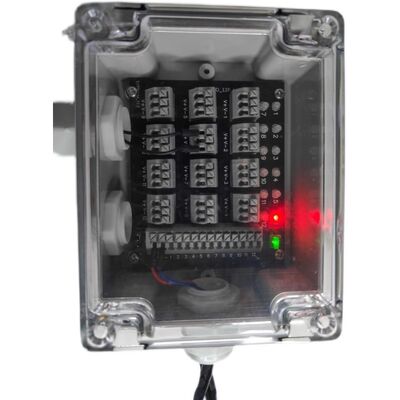

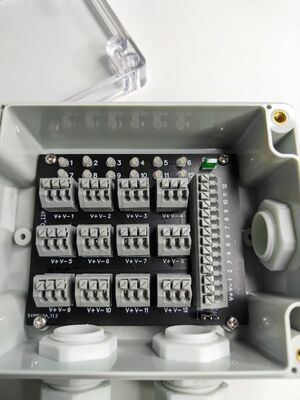

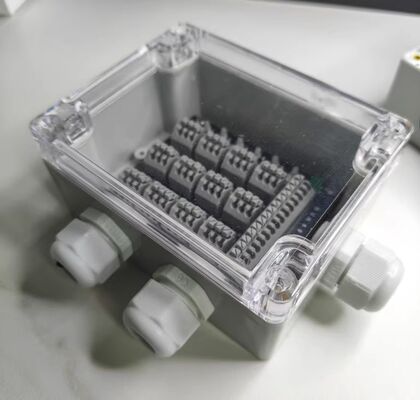

PLC Sensor Signal Input Distribution Module Terminal Blocks Junction Box 12 Arrays

PLC Sensor Signal Input Distribution Module Terminal Blocks Junction Box 12 Arrays

PLC Sensor Signal Input Distribution Module Terminal Blocks Junction Box 12 Arrays

Product Details:

Place of Origin:	China Mainland
Brand Name:	JETACON
Certification:	CE
Model Number:	Sensorboard-12

Payment & Shipping Terms:

Minimum Order Quantity:	2 Pieces
Price:	US $49.99
Packaging Details:	Standard Export Carton
Delivery Time:	3-5 days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	10 /Pieces per Day

Contact Now

Detailed Product Description

Color:	Gray	Application:	PLC Sensor NPN PNP Type
Box Size:	115mm X 90mm X 55mm	Waterproof:	Yes

Waterproof, it is compatible with 2 wire sensor and 3 wire sensor.

Junction Box Protection, 12 groups of singals inputs are available

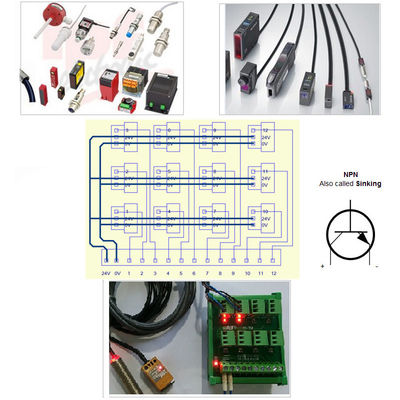

It accepts the sensor which is NPN and PNP

Voltage input : 24V DC

Rated Current for single wire: 0.5A

Rated Current for total 12 arrays : 2A

Package Including : 1* Sensor Singal Distribution Breakout Board

PLC Sensor Signal Input Distribution Module Terminal Blocks Junction Box 12 Arrays 0

PLC Sensor Signal Input Distribution Module Terminal Blocks Junction Box 12 Arrays 1

PLC Sensor Signal Input Distribution Module Terminal Blocks Junction Box 12 Arrays 2
