Home ProductsTerminal Blocks Interface Module

Proximity Switch Signal Sensor Wiring Distribution Terminal Blocks Breakout Board 8 Ways

Proximity Switch Signal Sensor Wiring Distribution Terminal Blocks Breakout Board 8 Ways

  • Proximity Switch Signal Sensor Wiring Distribution Terminal Blocks Breakout Board 8 Ways
  • Proximity Switch Signal Sensor Wiring Distribution Terminal Blocks Breakout Board 8 Ways
  • Proximity Switch Signal Sensor Wiring Distribution Terminal Blocks Breakout Board 8 Ways
  • Proximity Switch Signal Sensor Wiring Distribution Terminal Blocks Breakout Board 8 Ways
  • Proximity Switch Signal Sensor Wiring Distribution Terminal Blocks Breakout Board 8 Ways
  • Proximity Switch Signal Sensor Wiring Distribution Terminal Blocks Breakout Board 8 Ways
Proximity Switch Signal Sensor Wiring Distribution Terminal Blocks Breakout Board 8 Ways
Product Details:
Place of Origin: China Mainland
Brand Name: JETACON
Certification: CE
Model Number: Sensorboard-8way-SS
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: US $39.99
Packaging Details: Standard Export Carton
Delivery Time: 3-5 days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 10 /Pieces per Day
Contact Now
Detailed Product Description
Color: Black Application: PLC Sensor
Arrays No.: 8 Arrays MPN: EG-8CH

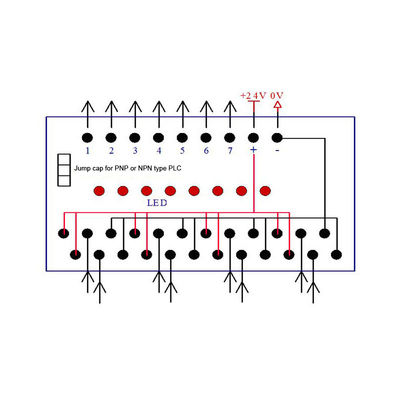

Quick Connecting with 2 wire sensor and 3 wire sensor.

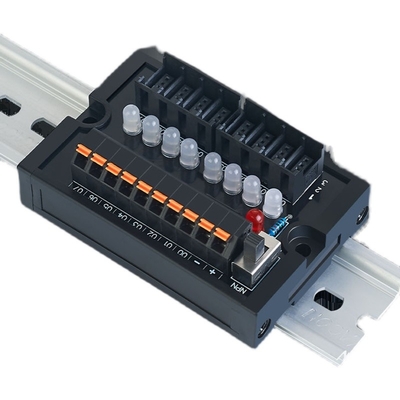

Standard Din Rail Type ( 35mm)

8 arrys of singals inputs are available

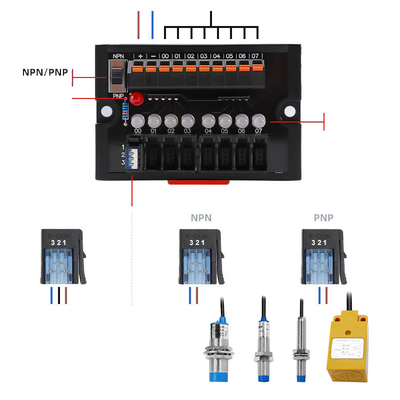

It accepts the sensor which is 0V(NPN) or 24V (PNP)


Voltage input : 24VDC

Rated Current for single wire: 0.5A

Rated Current for total 8 wires : 2A

Package Including : 1* Sensor Singal Distribution Breakout Board

Proximity Switch Signal Sensor Wiring Distribution Terminal Blocks Breakout Board 8 Ways 0
