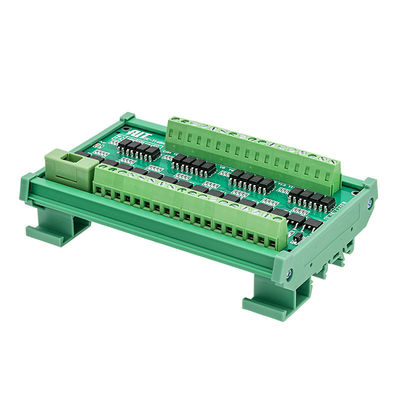

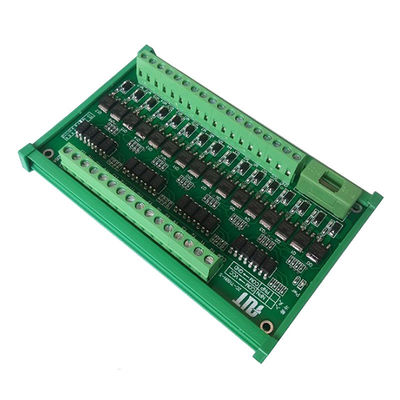

16 Ways PLC Power Amplifier Module Relay Board ZC16BN NPN Signal Output 24V DC

Product Details:

Place of Origin:	Guang Dong
Brand Name:	Jetacon
Certification:	UL, CE
Model Number:	ZC-16BN

Payment & Shipping Terms:

Minimum Order Quantity:	2 Pieces
Price:	US $69.99 / Piece
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1KK poles monthly

Contact Now

Detailed Product Description

Color:	Green	Current:	3A Each Channel
Voltage Input:	24v DC	Good For:	Mistubishi Or Simens
Output:	NPN Singal

Description:

- This product isolates or amplify the faint controlling signals(only need several mA current) through photoelectricity, then output large power controlling signal, to drive motor contactor magnetic valve etc.,

Parameters:

- It is suitable for most of Branded PLC (Mitsubishi, Fanuc, Siemens, Delta ....)

- Every channel rated current: 3A (continuous time) / 16A(instant current), unlimited using times

- Voltage range(loaded power): DC24V

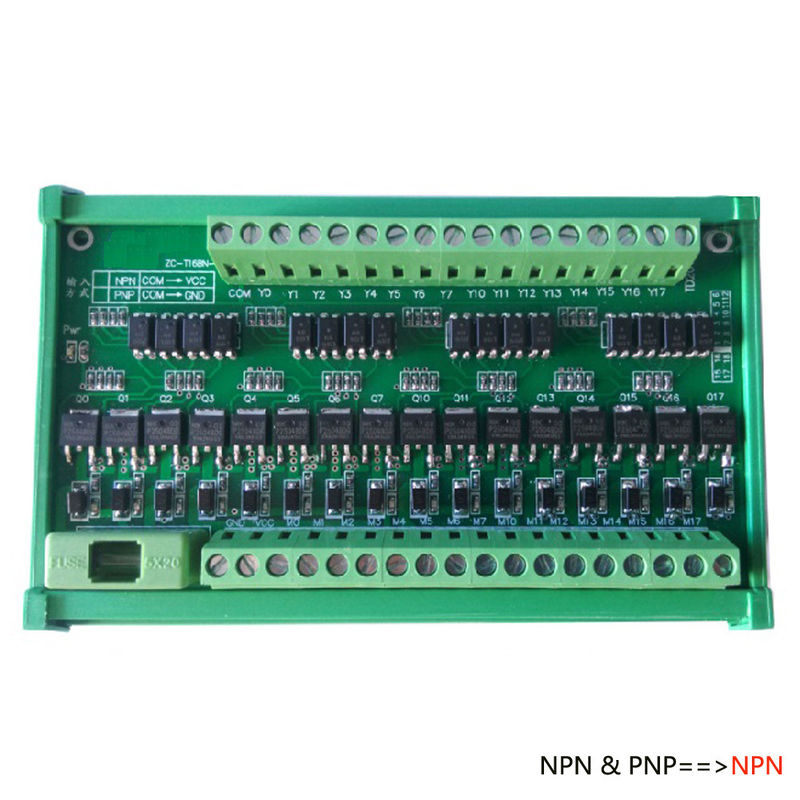

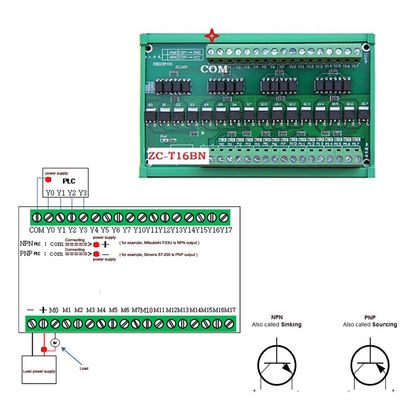

- Input mode: Both NPN and PNP ( for example, Mitsubishi FX3U is NPN output, Simens S7-200 is PNP output)

- Output form: NPN, low level output with LED indicator

- Amplyfing mode: Transistor

- Switch frequency≤1000HZ

- Breakover resistance<0.025Ω

- OptoCoupler isolate

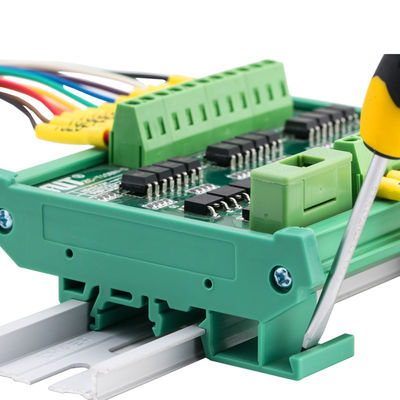

- Mouting Type: Standard Din Rail

- Net weight: 700g

- Unit Size: 139mm x 87mm x 44mm

Package Included:
1 * PLC Power Amplifier Board
Note: some times the item is from customized products, the actual product will have some minor difference from the photo, thanks.
