| Place of Origin: | Guang Dong |
| Brand Name: | Jetacon |
| Certification: | UL, CE |

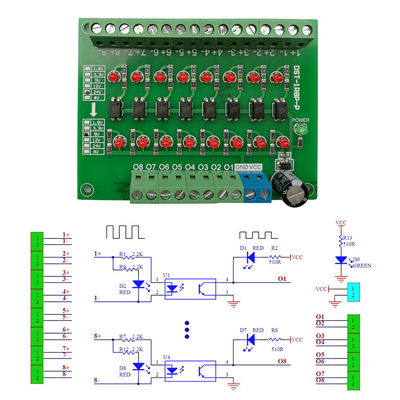

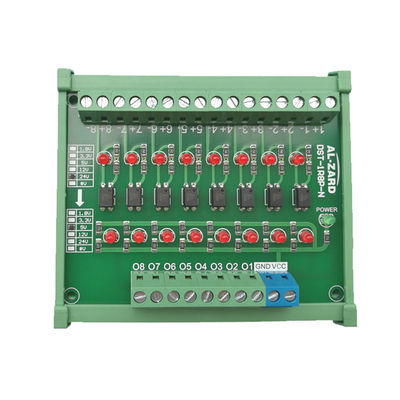

| Model Number: | DST-1R8P-N / P |
| Minimum Order Quantity: | 1 Pieces |
|---|---|
| Price: | US $64.99 |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T, L/C, Paypal, Payoneer |
| Supply Ability: | 1KK poles monthly |
| Power Supply: | DC24V | Singal Input: | 5V TTL A+ A- B+ B- |
|---|---|---|---|
| Singal Output: | 24V HTL |
LED indicator for output ON
The converters can be used with all kinds of low voltage sensors
Power Supply Voltage : 5.0V to 24V VDC
(*): The output current of each channel does not exceed 50 mA.
(*): The DC power supply is the same as the signal output voltage.
For example, if the signal is 24V to 5V, then VCC=5V input.

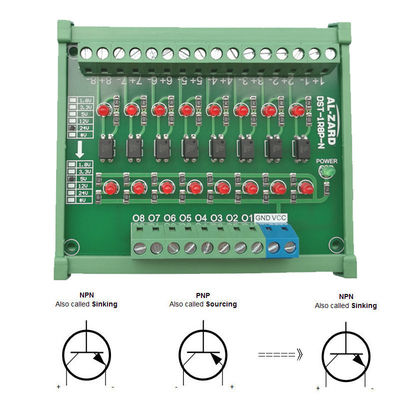

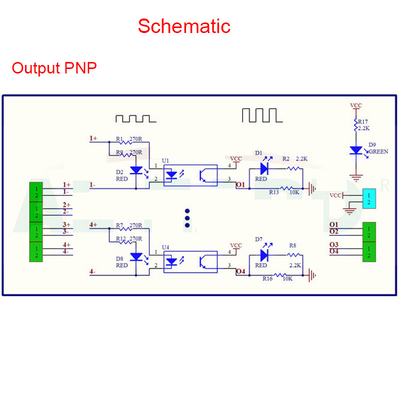

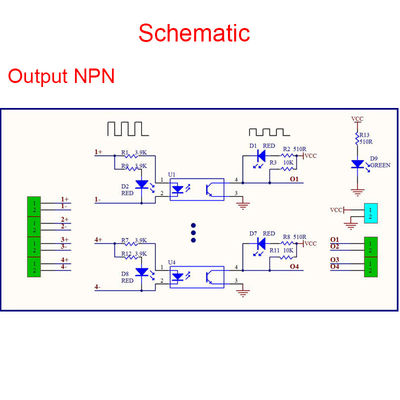

Output Voltage : NPN or PNP output

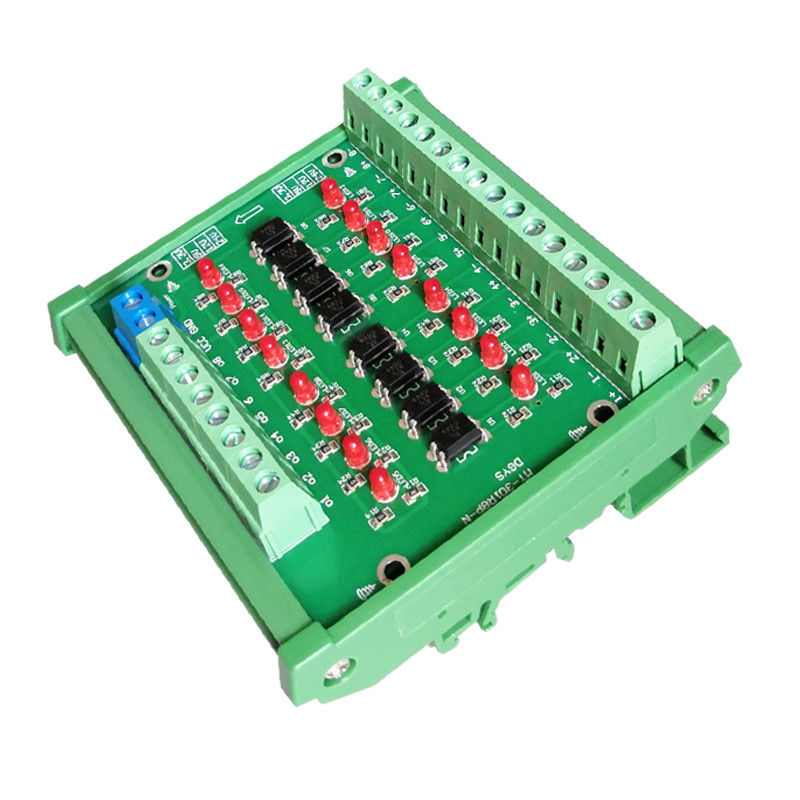

Standard DIN rail mounting ( 35 mm)
Temperature range 10 to 55 C

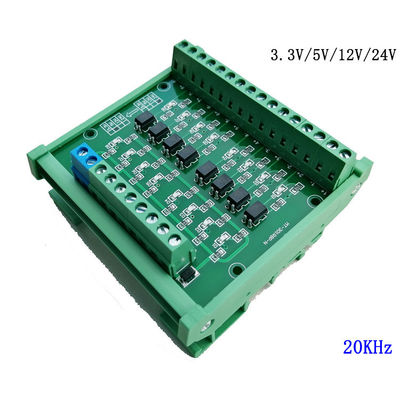

high speed counting up to 20Khz
Product size : 80mm L x 51mm W x 40mm H
Net Weight: 80g
--
Product Type A: NPN Output 1.8V Voltage input
Product Type B: NPN Output 3.3V Voltage input
Product Type C: NPN Output 5.0V Voltage input
Product Type D: NPN Output 12V Voltage input
Product Type E: NPN Output 24v Voltage input
-----
Product Type F: PNP Output 1.8V Voltage input
Product Type G: PNP Output 3.3V Voltage input
Product Type H: PNP Output 5.0V Voltage input
Product Type I: PNP Output 12V Voltage input
Product Type J: PNP Output 24v Voltage input
