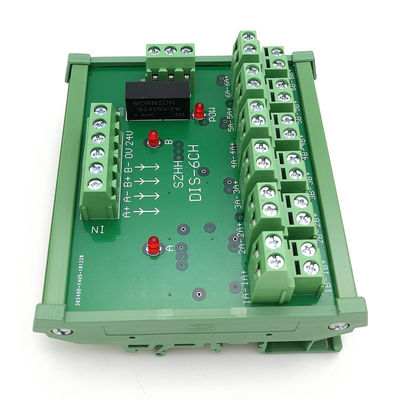

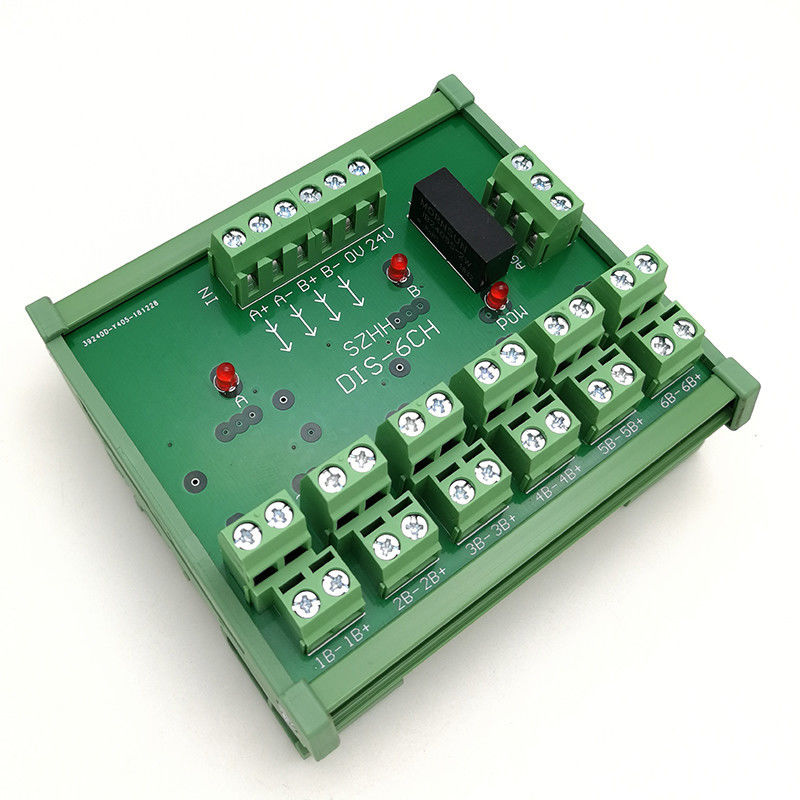

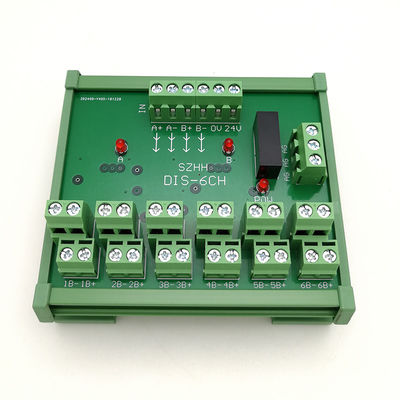

Stepping Timing Motor Pusle Singals Splitter Distributor 1 In 6 Out To Control Servo Drivers

Product Details:

Place of Origin:	Guang Dong
Brand Name:	Jetacon
Certification:	UL, CE
Model Number:	DIS-6CH

Payment & Shipping Terms:

Minimum Order Quantity:	5 pieces
Price:	US $49 / Piece
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1KK poles monthly

Contact Now

Detailed Product Description

Power Supply:	24V DC	Channels:	6

Introduction:

The Signal Splitter will accept 7-26 VDC signals and provide 6 independent groups of singals to control the stepper motors.

and completely isolated line driver outputs of 5-26 VDC based on user defined voltage levels.

Input Signal Current: 2.2 mA minimum, 3.5 mA typical

Frequency Range: 0 - 200 kHz

Signal out: four independent, isolated line driver output sets

Power Supply Voltage: 9-26 VDC

Output Current: 150 mA (maximum per channel)

Wire Gauge Accepted: 26 -16 AWG

Output Protection: short circuit protected

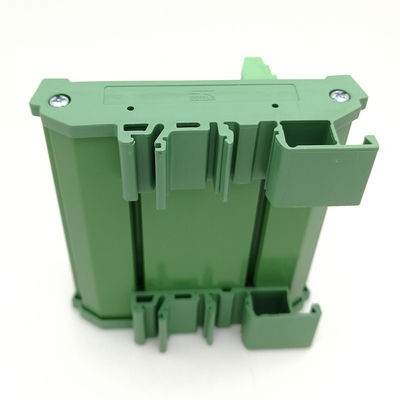

Mounting Options: DIN 35

Operating Temperature: 0°C to 50°C

Storage Temperature: -20°C to 70°C

Operational Humidity: 98% non-condensing

Product size:62mm Width x 87mm Length x 46mm Height

Applications:

Package Included:
1 * 6-Way Pulse Distributor
Note: some times the item is from customized products, the actual product will have some minor difference from the photo, thanks.
