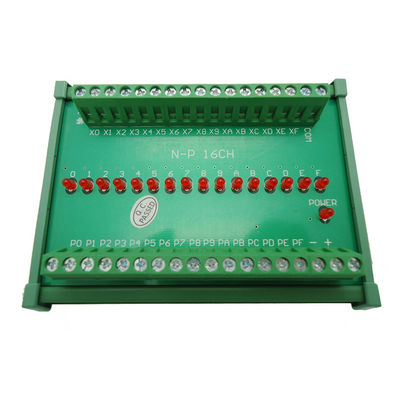

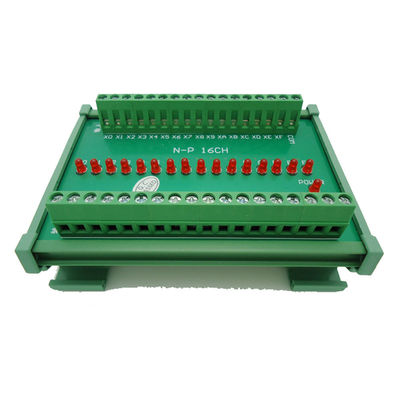

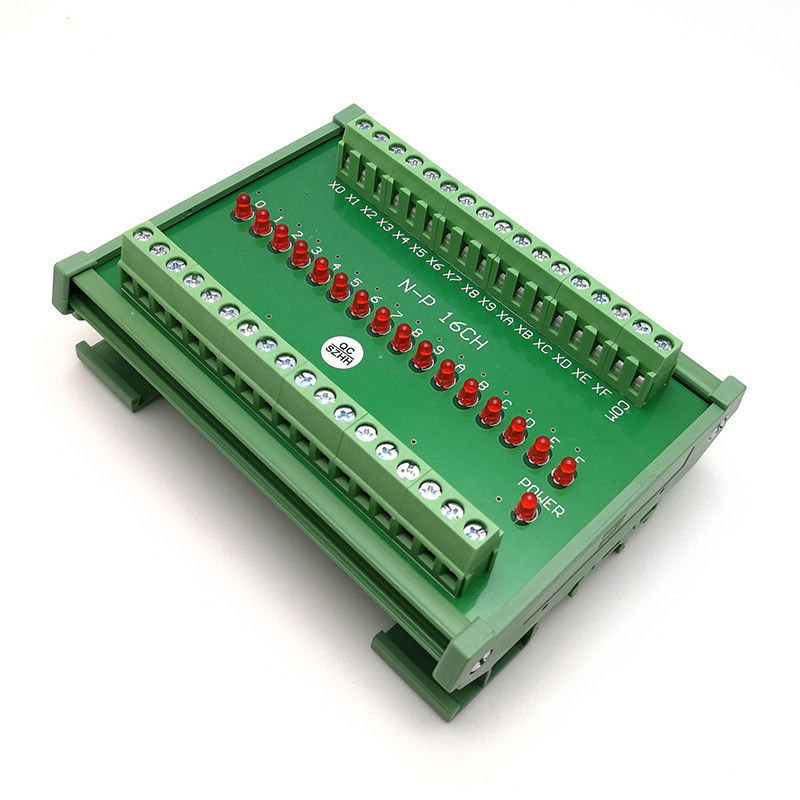

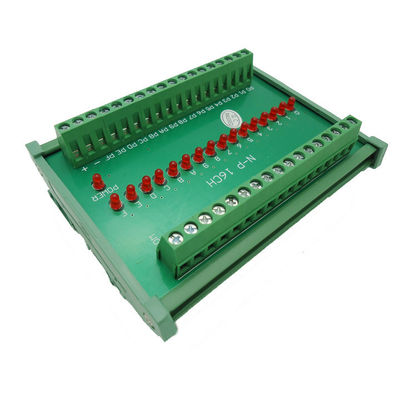

PLC Signal Conversion Module Level Polarity Converter NPN to PNP 16 Ways

PLC Signal Conversion Module Level Polarity Converter NPN to PNP 16 Ways

  • PLC Signal Conversion Module Level Polarity Converter NPN to PNP 16 Ways
  • PLC Signal Conversion Module Level Polarity Converter NPN to PNP 16 Ways
  • PLC Signal Conversion Module Level Polarity Converter NPN to PNP 16 Ways
  • PLC Signal Conversion Module Level Polarity Converter NPN to PNP 16 Ways
  • PLC Signal Conversion Module Level Polarity Converter NPN to PNP 16 Ways
PLC Signal Conversion Module Level Polarity Converter NPN to PNP 16 Ways
Product Details:
Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: N-P 16CH 24V
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Contact Now
Detailed Product Description
Color: Green Ways: 16 Ways
Rate: 10Khz Current: 500mA Maxium Each Channel

Item Number: N-P 16CH or P-N 16CH
NPN to PNP ( or PNP to NPN ) signals level converters, Opto-couplers isolation
LED indicator for output ON
Supply Voltage : 24 VDC
Output Voltage : 24 VDC
Current consumption each channel: 500mA maxium
Standard DIN rail mounting ( 35 mm)
Temperature range 10 to 55 C
high speed counting up to 10Khz

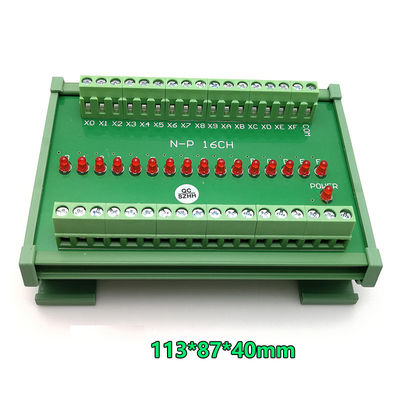

Product size : 113mm L x 87mm W x 43mm H
Weight: 120g
PLC Signal Conversion Module Level Polarity Converter NPN to PNP 16 Ways 0
PLC Signal Conversion Module Level Polarity Converter NPN to PNP 16 Ways 1
---
Note: Item number: P-N 16CH, PNP to NPN 16 channes Converter is also available
PLC Signal Conversion Module Level Polarity Converter NPN to PNP 16 Ways 2
