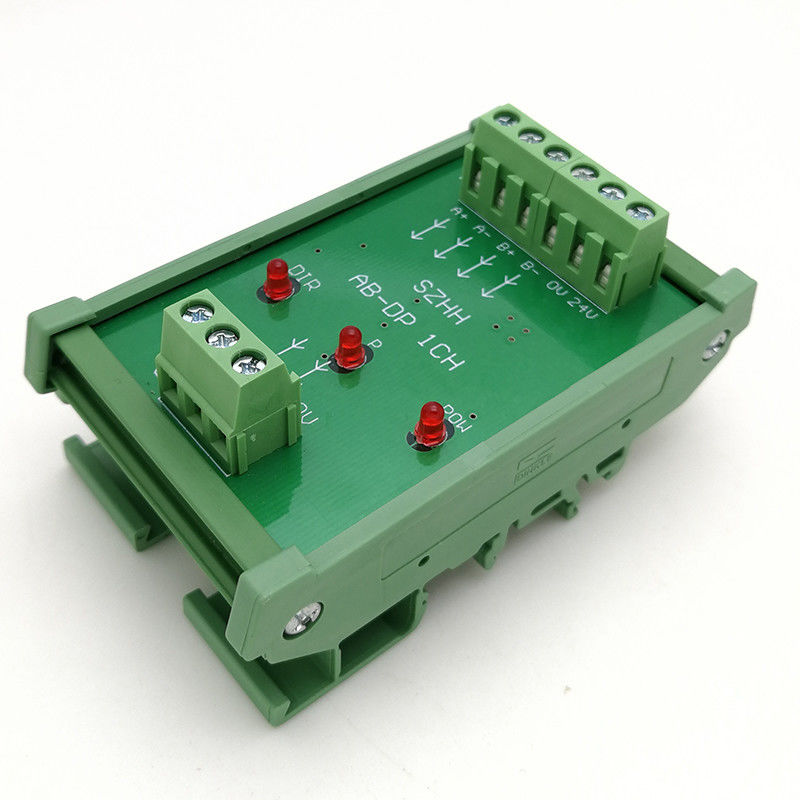

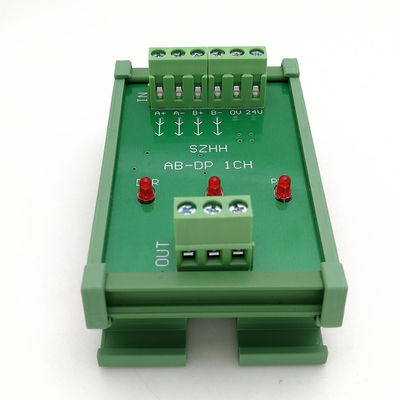

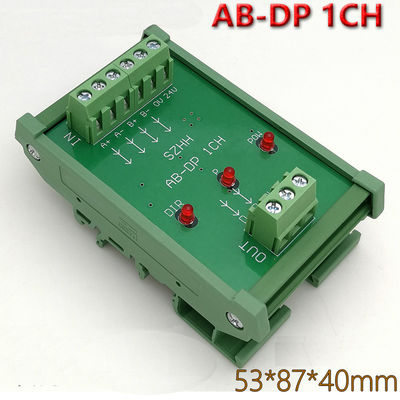

Converter Encoder A B Quadrature Signals 90° Phase Difference into Pusle Signal with Direction

Product Details:

Place of Origin:	Guang Dong
Brand Name:	Jetacon
Certification:	UL, CE
Model Number:	AB-DP 1CH

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	US $39 / Piece
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1KK poles monthly

Contact Now

Detailed Product Description

Power Supply:	24 VDC	Frequency:	0 - 500KHz

Introduction:

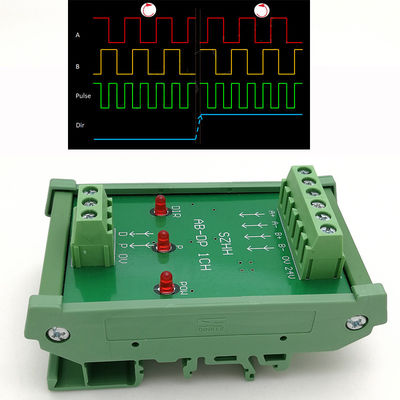

A B phase signals with 90 degree phase difference converting into Pusle Signal and Direction

Frequency Range: 0 - 500 kHz

Application reference: Electronic Handwheel ( Encoder ) A B phase singals converting

Please choose product type options:

Option 1: 24V collector signal input AB-DP-24V

Option 2: 5V differential signal input AB-DP-5V

Signal input: Pusle Signal and Direction, 24V Collector NPN ouput

Power Supply Voltage: 24 VDC

Wire Gauge Accepted: 26 -16 AWG

Output Protection: short circuit protected

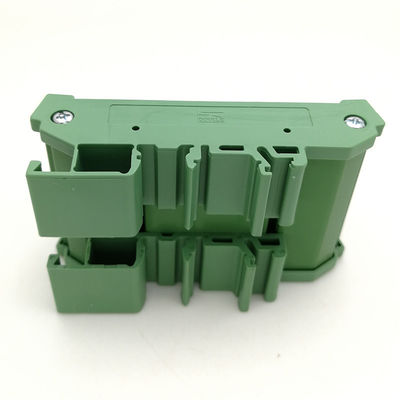

Mounting Options: DIN 35

Operating Temperature: 0°C to 50°C

Storage Temperature: -20°C to 70°C

Operational Humidity: 98% non-condensing

Applications:

Package Included:
1 * Encoder Pulse Signal Converter
Note: some times the item is from customized products, the actual product will have some minor difference from the photo, thanks.
