| Place of Origin: | China Mainland |
| Brand Name: | OEM |
| Certification: | CE |
| Model Number: | 57BYG250B New Version |
| Minimum Order Quantity: | 1 Pieces |
|---|---|
| Price: | US $79.99 |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, L/C, Paypal, Payoneer |
| Supply Ability: | 100 /Pieces per Day |
| Shaft Lenth: | 21mm | Torque: | 12 N.M |
|---|---|---|---|
| Current: | 3A | Step Angle: | 1.8 Degree |

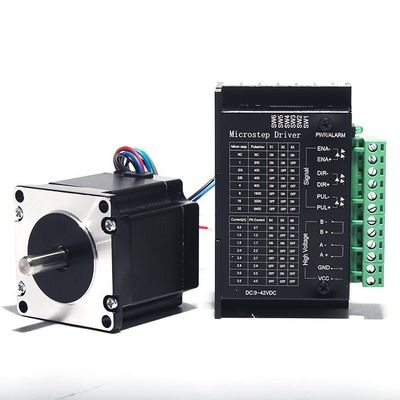

Parameter on the motor:
Motor model: 57BYG250B
Current: 3A
Output torque: 1.2Nm
Body length: 56mm
Shaft length: 21mm
Shaft diameter: 8mm
Shaft mode: single axis
Outlet mode: two phase four lead wire (black A+, green A-, red B+, blue B-)

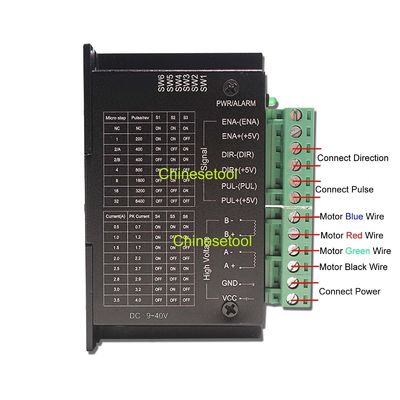

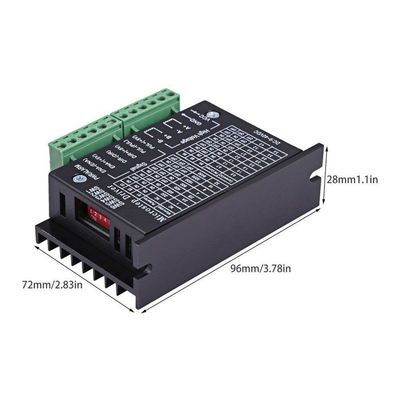

Parameter on the driver:
Driver model: TB6600
Input voltage: DC 9 ~ 24V
Current: 4A
Subdivision: 3200
Various protection: overcurrent, overvoltage, undervoltage, short circuit protection
Offline: offline (ENA) protection function

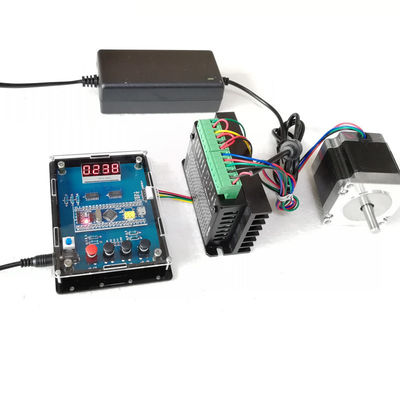

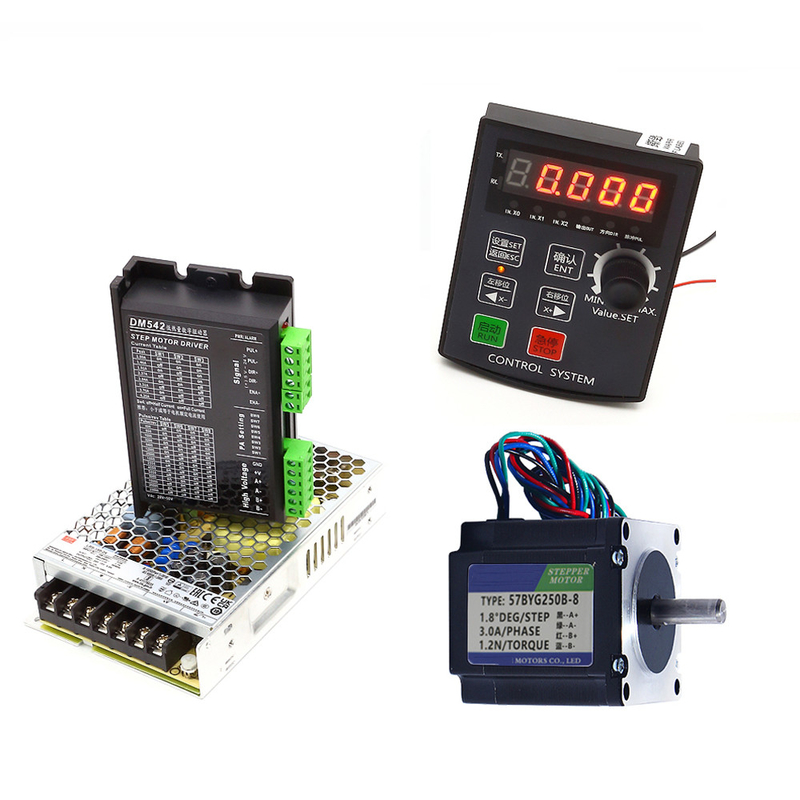

Package included:
1 x Stepper Motor
1 x Motor Driver

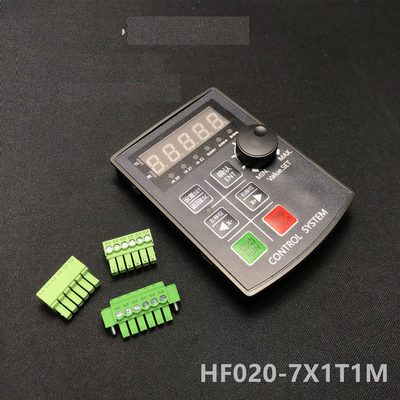

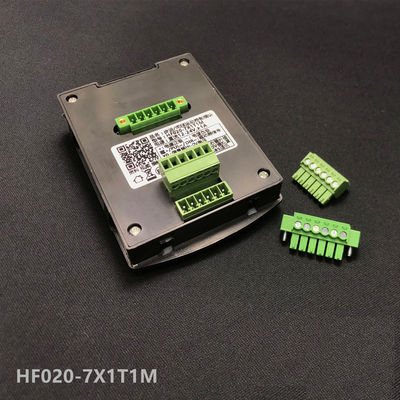

1 x Speed directon controller
1 x Power Adapter
