Name: Converter Servo Encoder Differential TTL 5v to Collector 5v HTL Signals DC5V 3 Ways
Brand: Jetacon Technology Limited
SKU: DIS-OC 2M 3CH 5V
Availability: InStock

Home Products Terminal Blocks Interface Module

Converter Servo Encoder Differential TTL 5v to Collector 5v HTL Signals DC5V 3 Ways

Product Details:

Place of Origin:	Guang Dong
Brand Name:	Jetacon
Certification:	UL, CE
Model Number:	DIS-OC 2M 3CH 5V

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	Get latest price
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1KK poles monthly

Contact Now

Detailed Product Description

Power Supply:	DC 5V	Singal Input:	5V TTL A+ A- B+ B- Z+ Z-
Singal Output:	5V HTL

Introduction:

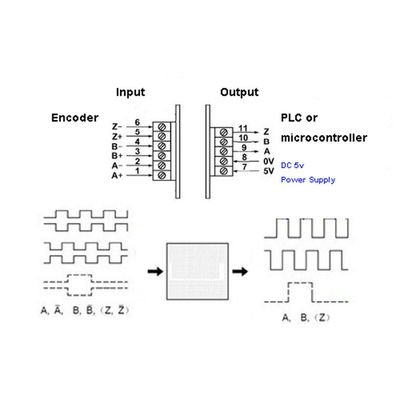

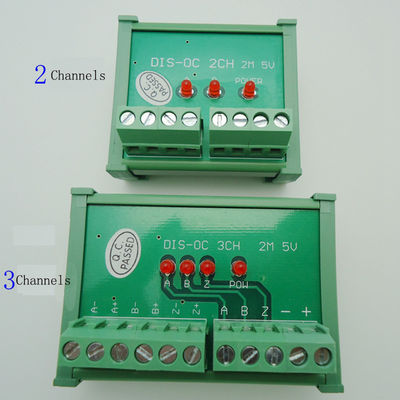

1. Make Encoder differential signal to the open collector signal output, 3 Channels, electrical isolation between input and output.
2. Working frequency: 2000000Hz
3. The signal output mode: push-pull output
4. Installation: DIN35mm rail mounting,convenient and quick
5. Product Size: 105mm x 87mm x 35mm around
6. Rated Working Power Voltage: DC5V

7.Signals Input A+/A-/B-/B+/Z+/Z- TTL / RS232 Signal 5V DC

8.Signals Output A/B/Z HTL Signal 5V

Applications:
1. servo driver A B Z signal output to the collector , input to the PLC high-speed counter interface.
2. the differential encoder output signal to the collector output signal, input to the PLC high-speed counter interface.

Package Included:
1 * 3-Way Differential to collector
Note: some times the item is from customized products, the actual product will have some minor difference from
the photo, thanks.
