Place of Origin: | Guang Dong |
Brand Name: | Jetacon |
Certification: | UL, CE |
Model Number: | PT 2.5 |
Minimum Order Quantity: | 20 pieces |
---|---|
Price: | Get latest price |
Packaging Details: | Standard Export Carton |
Delivery Time: | 7-20 working days |
Payment Terms: | T/T, L/C, Paypal, Payoneer |
Supply Ability: | 1KK poles monthly |
Number Of Contacts: | 1 - 10 | Conductor Size: | 11 - 20 AWG |
---|---|---|---|
Type: | Screw | Voltage: | 800V |
Current: | 31A |
---
Features:

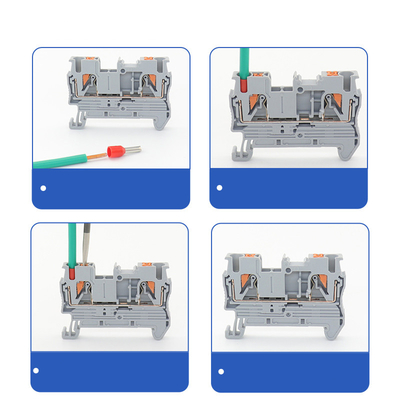

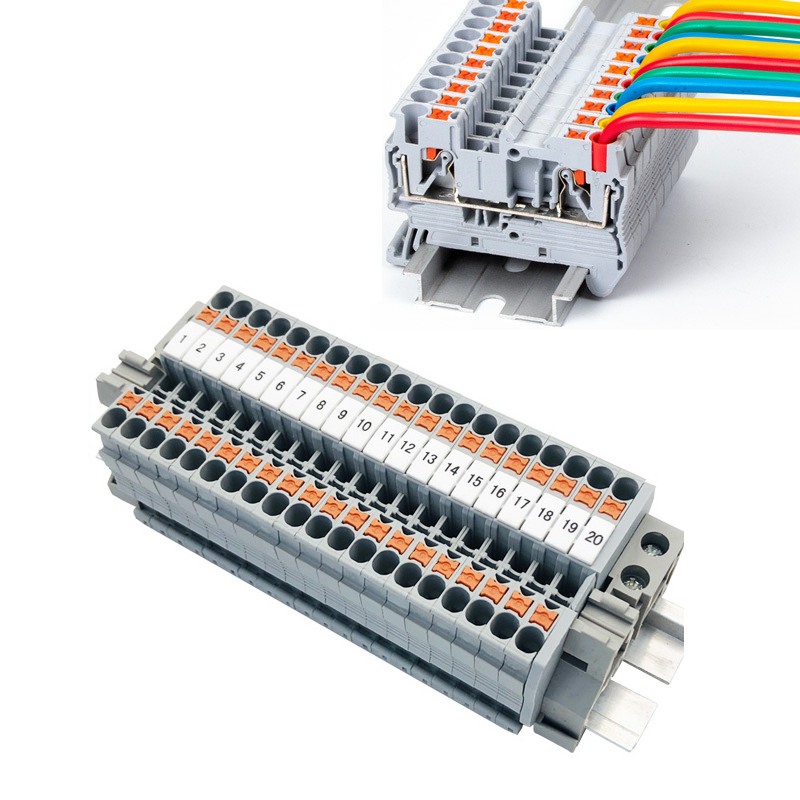

The Push-in direct connection technology make the insertion forces reduced by up to 50 percent and tool-free wiring, enable the conductors to be inserted easily and directly.
Made from engineering flame retardants nylon PA66 with brass screw metal.
Made from engineering flame retardants nylon PA66 with brass screw metal.
Technical Parameter:

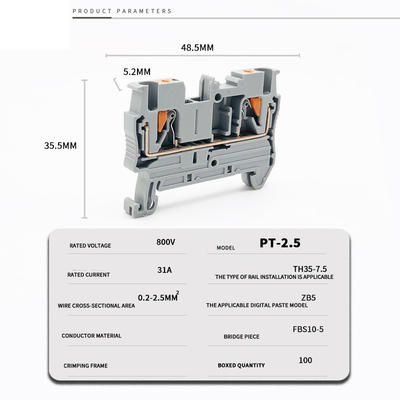

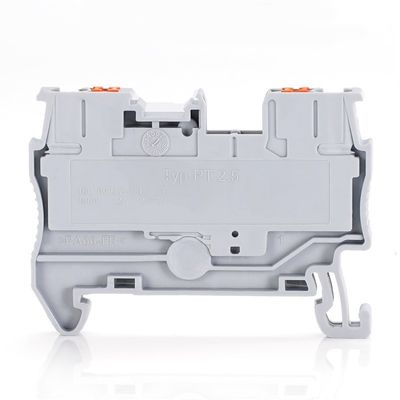

Model Number | PT 2.5 |

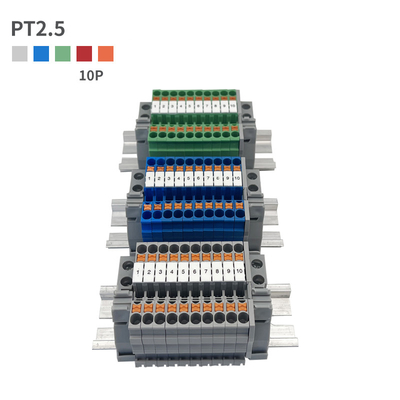

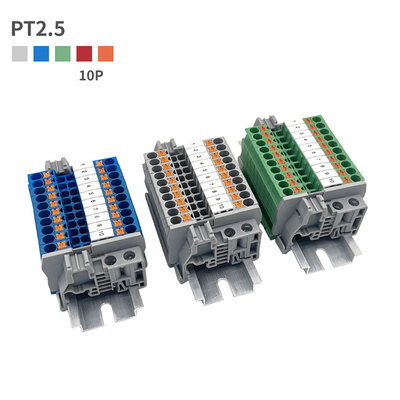

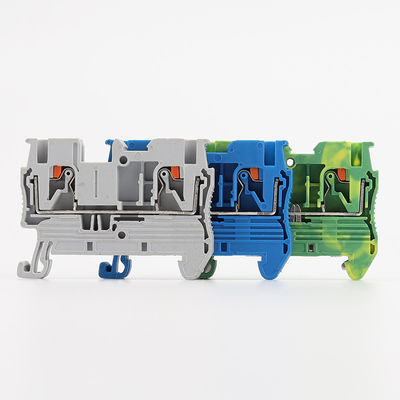

Color | Grey, Blue, other color can be customized |

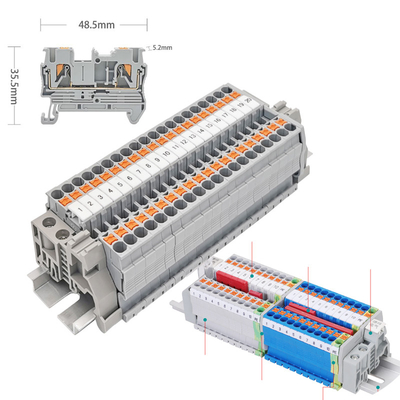

Length/ Wide / Height (mm) | 48.5 / 36 / 5 |

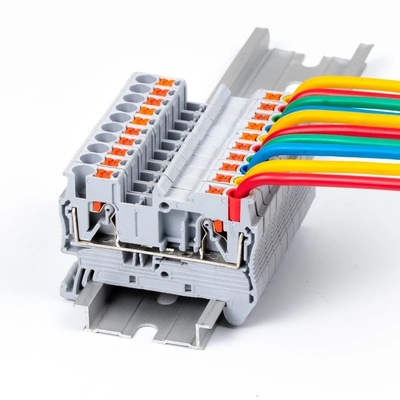

Connection method | Push-in connection |
Material | Nylon PA66 |
Rated Voltage / Current | 800V/31A |
Cross section, solid/soft Cable | 0.2-4mm⊃2; / 0.2-2.5mm⊃2; |
Conductor Size | 24-12 AWG |
Mounting Type | NS 35/7.5 |
Standard | IEC 60947-7-1 |
LOGO | Customized logo are supported |
Packing Detail | 5.79g/pc, 100PCS / BOX |
Certification | CE / RoHS / CQC / ISO 9001 |
-
