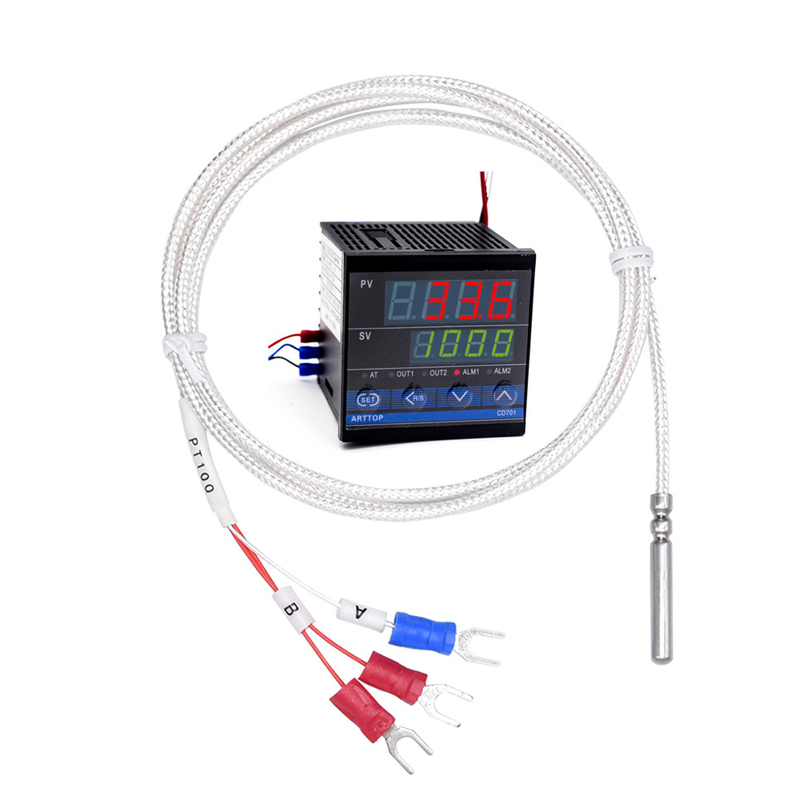

Temperature Controller Thermocouple Sensor Cable Stainless Steel Probe Tube PT100 -50°C~200°C

Features & Applications:

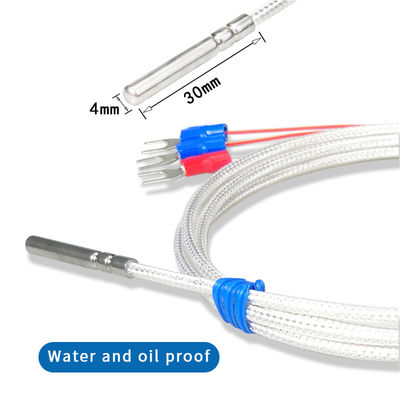

Probe Size: 4*30mm

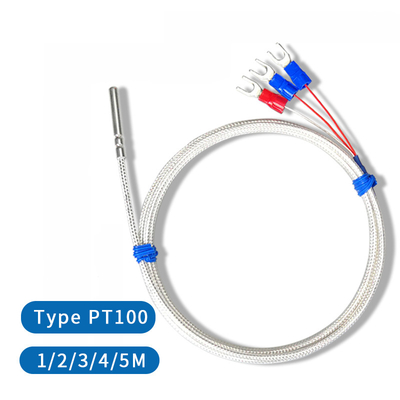

Cable length: 0.5m,1m,2m,3m,4m,5m
Temperature range: -50~200 °C ( can be customized according to customer requirements )
Cable with PTFE Polytetrafluoroethylene, Waterproof

Introduction:
Pt100 is a platinum thermal resistance whose resistance is proportional to the change in temperature.
The relationship between the resistance of PT100 and temperature is: when the temperature of PT100 is 0 °C, its resistance is 100 ohms, and its resistance is about 138.5 ohms at 100 °C.
Its industrial principle: When the PT100 is at 0 degrees Celsius, its resistance is 100 ohms, and its resistance will increase at a constant rate as the temperature rises.

The resistance value and temperature of the metal thermal resistance can generally be expressed by the following approximate relationship,
that is,Rt=Rt0[1+α(t-t0)]
Where Rt is the resistance at temperature t; Rt0 is the corresponding resistance value at temperature t0 (usually t0 = 0 °C); α is the temperature coefficient.
The relationship between the resistance and temperature of the semiconductor thermistor is Rt=AeB/t
Where Rt is the resistance at a temperature of t; A, B depends on the constant of the structure of the semiconductor material.

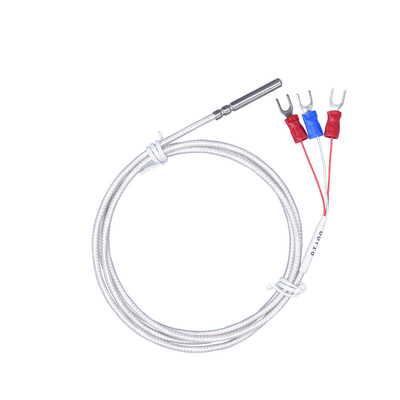

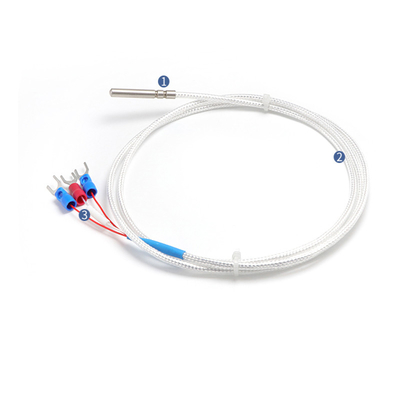

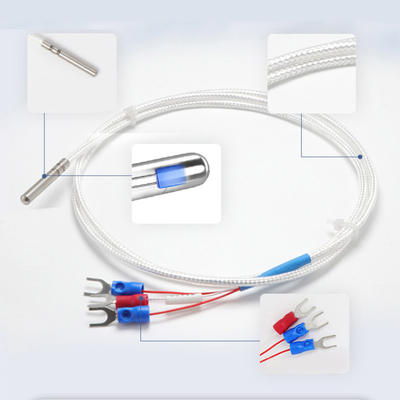

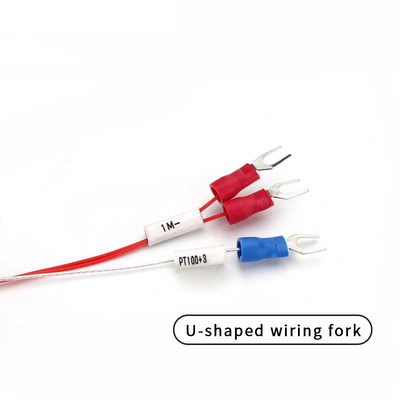

Photos:
