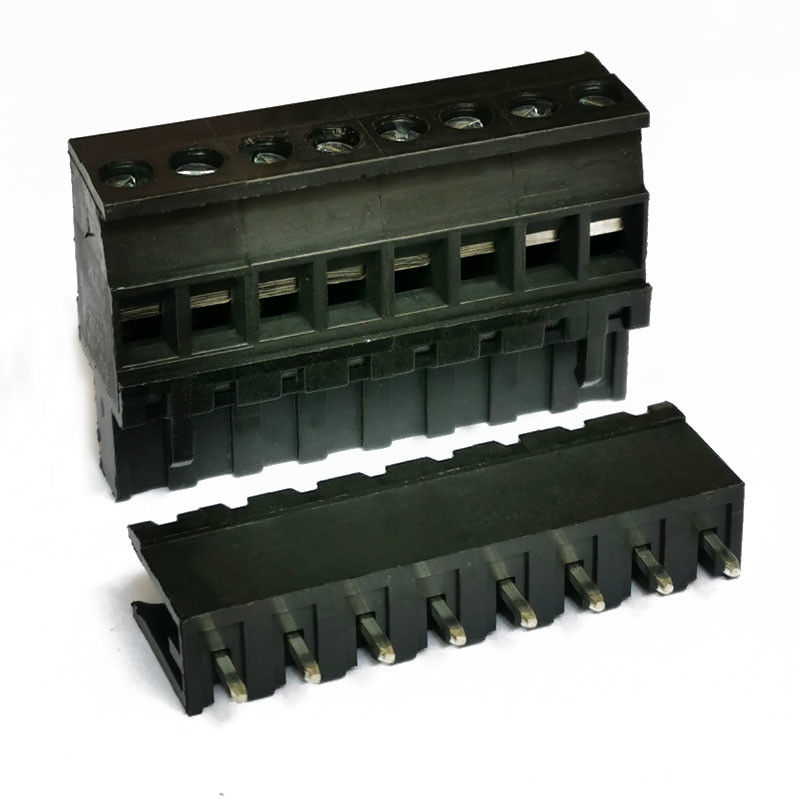

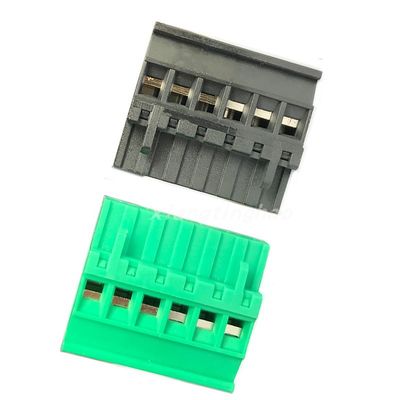

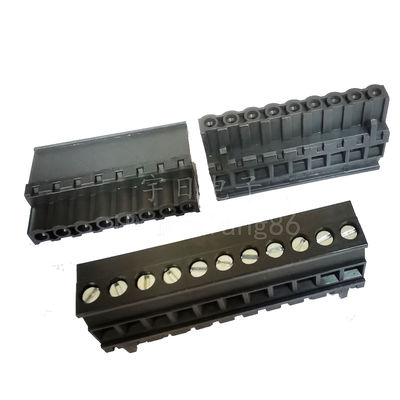

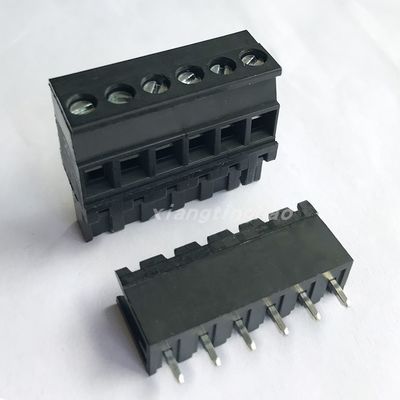

Name: 5.08mm Pitch Black Color Screw Terminal Blocks Plug Straight Pin Horizontal Entry Wiring
Brand: Jetacon Technology Limited

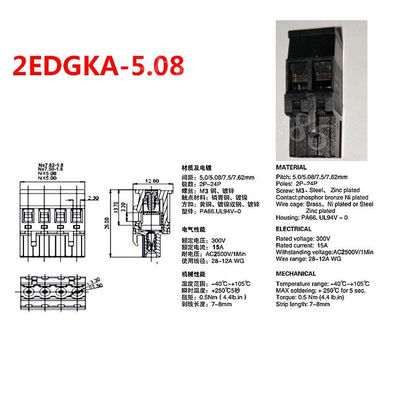

SKU: KF 2EDGKA-5.08 / 2EDGV-5.08
Availability: InStock

Home Products Terminal Blocks Pluggable

5.08mm Pitch Black Color Screw Terminal Blocks Plug Straight Pin Horizontal Entry Wiring

Product Details:

Place of Origin:	Guang Dong
Brand Name:	Jetacon
Certification:	UL, CE
Model Number:	KF 2EDGKA-5.08 / 2EDGV-5.08

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	Get latest price
Packaging Details:	Standard Export Carton
Delivery Time:	7-15 days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1000 /Pieces per Day

Contact Now

Detailed Product Description

Rated Voltage:	300V	Rated Current:	15A
Type:	Electrical Plug	Grounding:	Non-Grounding
Color:	Black

Specifications:

Condition: Brand New

Certification: CE, Rohs

Pitch: 5.08mm

Poles: 2 Pins to 20 pins

Color:Green

Torque: 0.2Nm

Strip length: 5-6mm

Rated voltage: 300V

Rated current: 15A IEC

Insulation resistance: 5000MΩ/1000V

Contact resistance: 20mΩ

Withstanding voltage: 2000V/1min

Wire range: 28~16AWG

Note: The terminal blocks are in stock from 2 poles to 20 poles
5.08mm Pitch Black Color Screw Terminal Blocks Plug Straight Pin Horizontal Entry Wiring 0
