| Place of Origin: | China Mainland |
| Brand Name: | Jetacon |
| Certification: | CE |
| Model Number: | FVG HVG 0W 2W 3W |
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | US $20.99 |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, L/C, Paypal, Payoneer |
| Supply Ability: | 100pcs / per day |
| AWG: | 8-22 | Pressure: | 30 Bars |
|---|---|---|---|

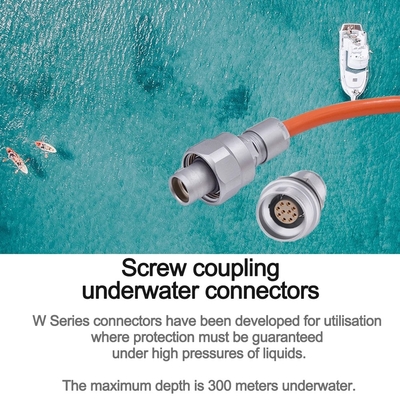

| Depth: | 300 Meteres Above | Material: | Brass With Nickel Plated |
| Insulator: | Insulator: PEEK And PPS Plastic | Pin Number: | 2 Pin To 32 Pin |

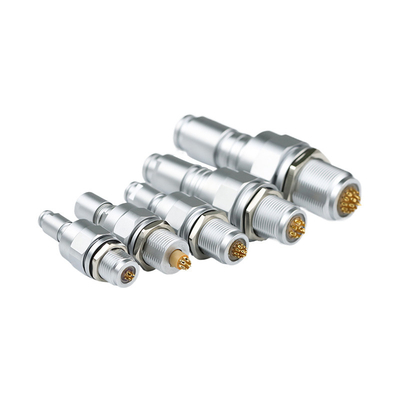

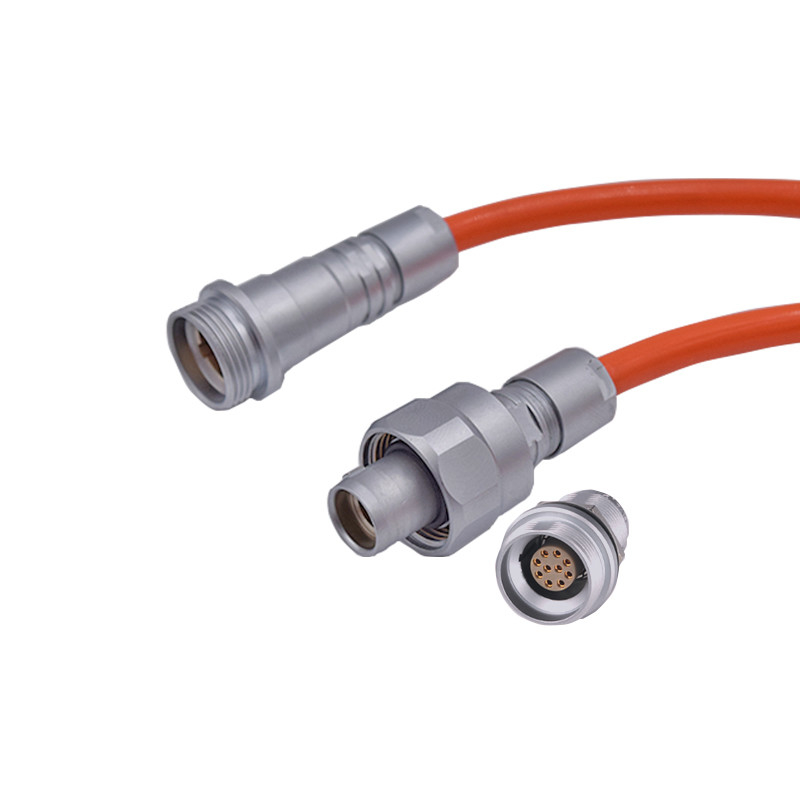

Model: FVG HVG PVG

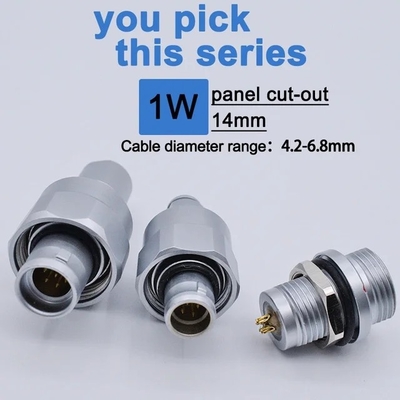

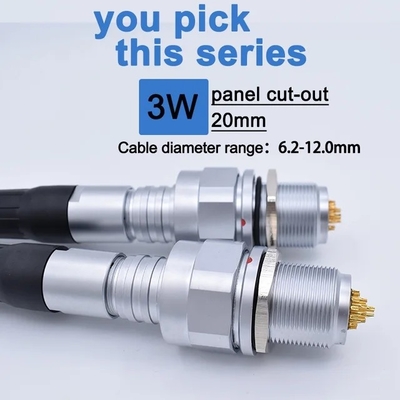

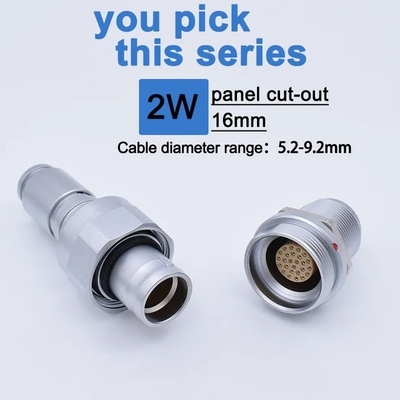

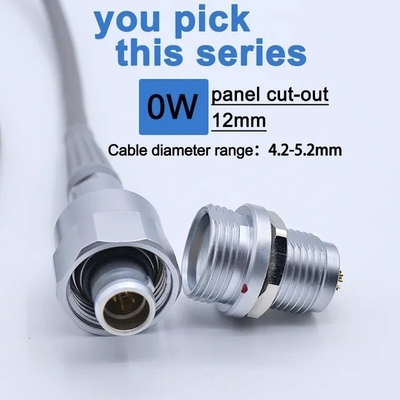

Size:0W 1W 2W 3W
Pin: 2,3,4,5,6,7,8,10,12,14,16 to 32
Gender: Male / Female
Type: Plug / Socket
Keying: 0(G)
Humidity: 95% at 60 degrees

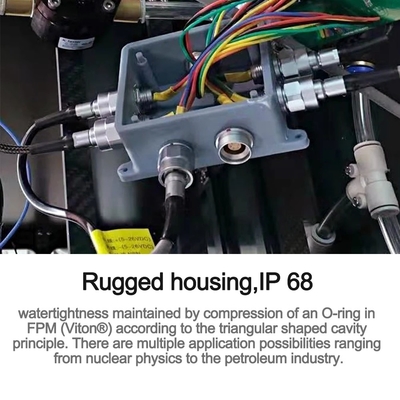

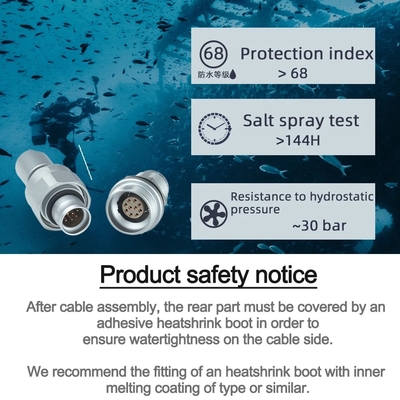

Protection index: IP68 (while insertion)
Working temperature range: -45℃, +150℃
Endurance: ＞5000 cycles
Resistance to vibration: 10-2000Hz, 15g
Corrosion resistance: Salt spray test>144h
Shielding: >10Mhz is 75dB, >1Ghz is 40dB
Body material: Brass with Nickel plated
Contact Pin Material: Gold plated phosphor copper
Insulator material: PEEK and PPS
Note:

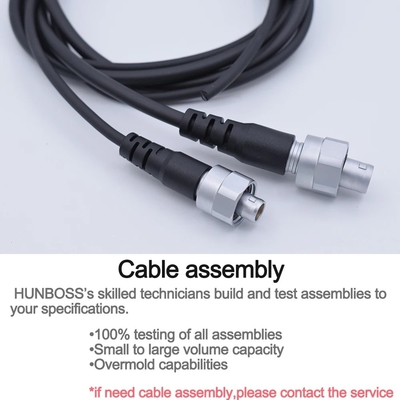

If the deep water depth is above 200 meters, please let us to assembly the cables for you to make sure of reliability.
If the deep water depth is above 600 meters, please contact us to choose correct steeless steel connector material and its profile.
