| Place of Origin: | China Mainland |
| Brand Name: | Jetacon |
| Certification: | UL, CE |
| Model Number: | DT-120 |
| Minimum Order Quantity: | 500 pieces |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T, L/C, Paypal, Payoneer |
| Supply Ability: | 1KK poles monthly |
| Type: | Cable Lug | Material: | Copper |
|---|---|---|---|
| Treatment: | Tin Plated |
1.Material:copper
2.Plating: Tin Plated
3.Certificates: ROHS
4.OEM / ODM
5.Various wire range
Dimension

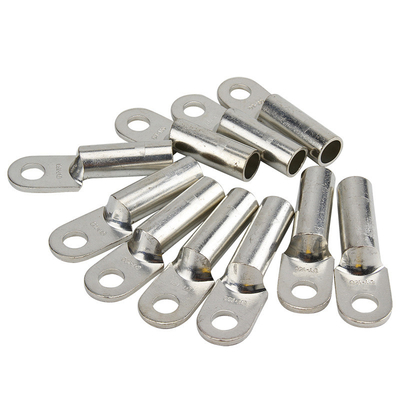

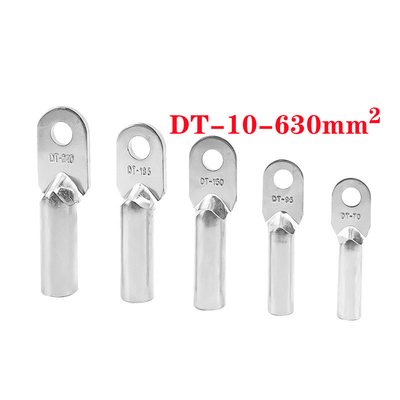

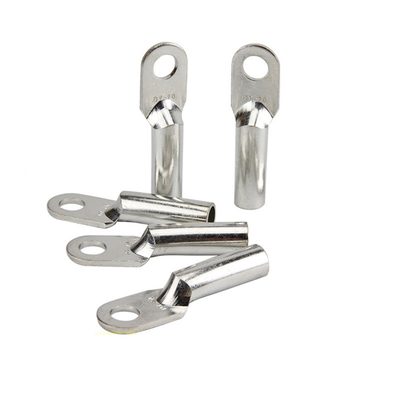

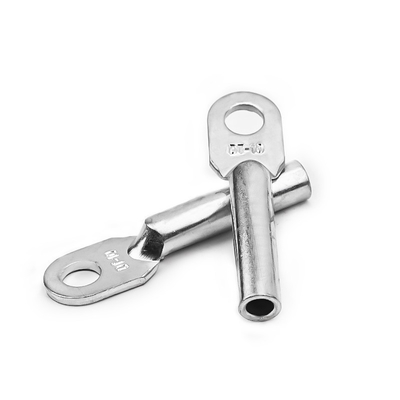

DT Copper Cable Lug With Oil Plugging DT Copper Cable Lug With Oil Plugging DT Copper Cable Lug With Oil Plugging
| Item No. | Cable spec (mm2) |
Dimensions(mm) | Note | ||||||
| D | d | L | L1 | W | φ | T | |||
| DT10 | 10 | 9 | 5 | 68 | 28 | 16 | 8.5 | 3.8 | (1)Can be produced according to customer's drawings |
| DT16 | 16 | 10 | 6.4 | 68 | 33 | 16 | 8.5 | 4 | |
| DT25 | 25 | 11 | 7.4 | 70 | 34 | 16 | 8.5 | 4 | |
| DT35 | 35 | 12 | 8.7 | 80 | 38 | 20 | 10.5 | 4 | |
| DT50 | 50 | 14 | 9.7 | 90 | 43 | 23 | 10.5 | 5 | |
| DT70 | 70 | 16 | 11.7 | 95 | 45 | 26 | 12.5 | 5 | |
| DT95 | 95 | 18 | 13.7 | 105 | 49 | 28 | 12.5 | 5 | |
| DT120 | 120 | 20 | 15.2 | 112 | 53 | 30 | 14.5 | 6 | |
| DT150 | 150 | 22 | 16.7 | 120 | 55 | 33 | 14.5 | 6 | |
| DT185 | 185 | 24 | 18.7 | 126 | 57 | 37 | 17 | 6.5 | |
| DT240 | 240 | 27 | 21 | 136 | 58 | 40 | 17 | 6.5 | |
| DT300 | 300 | 30 | 23 | 160 | 67 | 50 | 17 | 7 | |
| DT400 | 400 | 32 | 26 | 168 | 75 | 50 | 21 | 7.5 | |
| DT500 | 500 | 35 | 29 | 190 | 75 | 60 | 21 | 9.5 | |
| DT630 | 630 | 45 | 35 | 220 | 85 | 80 | 21 | 9.5 | |
| DT800 | 800 | 50 | 38 | 260 | 85 | 80 | 21 | 10 | |
Oil plugged DT Type Copper Connecting Terminal Lugs(oil plugging), Oil plugged DT Type Copper Connecting Terminal Lugs
