3.96mm Pitch PCB Pluggable Screw Terminal Blocks Plug + Pin Header Socket Green HT3.96

3.96mm Pitch PCB Pluggable Screw Terminal Blocks Plug + Pin Header Socket Green HT3.96

3.96mm Pitch PCB Pluggable Screw Terminal Blocks Plug + Pin Header Socket Green HT3.96

Product Details:

Place of Origin:	China Mainland
Brand Name:	Jetacon
Certification:	CE,UL
Model Number:	HT3.96

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	US $0.09
Packaging Details:	Standard Export Carton
Delivery Time:	7-15 days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1000 /Pieces per Day

Contact Now

Detailed Product Description

Contacts:	Copper	Spacing:	3.96mm
Current:	10A	Pins:	2 Pins To 12 Pins

Certification: CE, Rohs
Pitch: 3.96mm
Poles: 2 pins to 12 pins
Color:Green
Torque: 0.2Nm
Strip length: 5-6mm
Rated voltage: 300V
Rated current: 10A
Insulation resistance: 5000MΩ/1000V
Contact resistance: 20mΩ
Withstanding voltage: 2000V/1min
Wire range: 24~12AWG

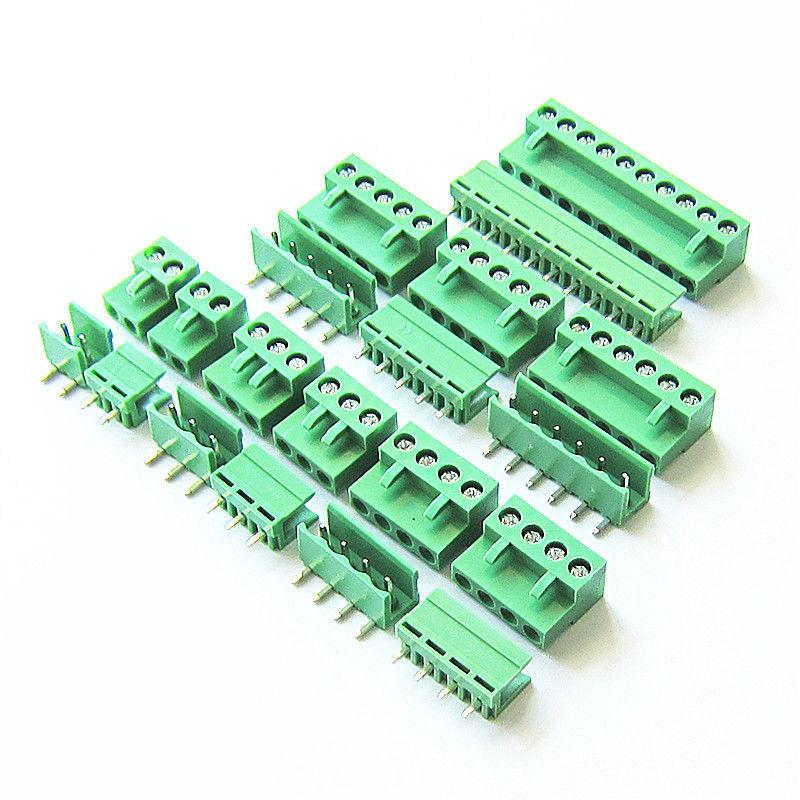

3.96mm Pitch PCB Pluggable Screw Terminal Blocks Plug + Pin Header Socket Green HT3.96 0

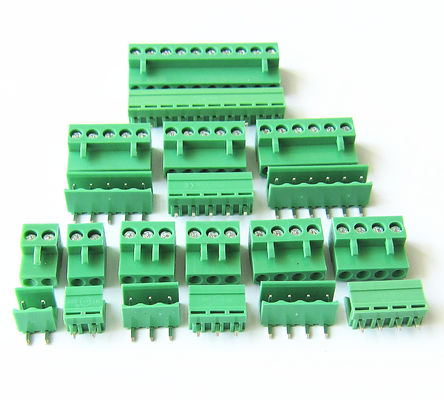

3.96mm Pitch PCB Pluggable Screw Terminal Blocks Plug + Pin Header Socket Green HT3.96 1

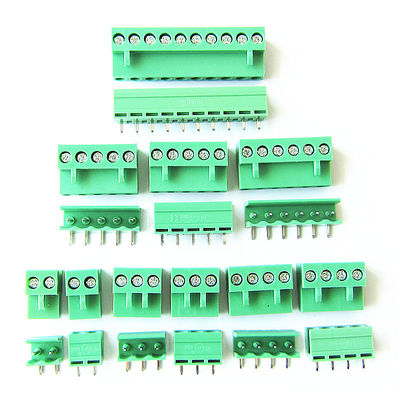

3.96mm Pitch PCB Pluggable Screw Terminal Blocks Plug + Pin Header Socket Green HT3.96 2

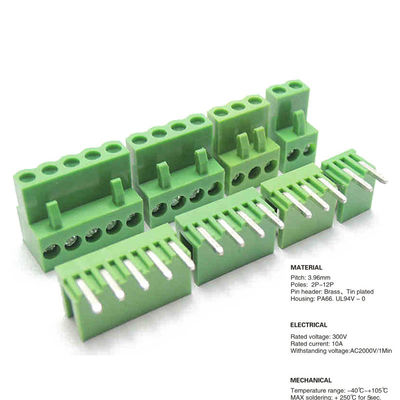

3.96mm Pitch PCB Pluggable Screw Terminal Blocks Plug + Pin Header Socket Green HT3.96 3
