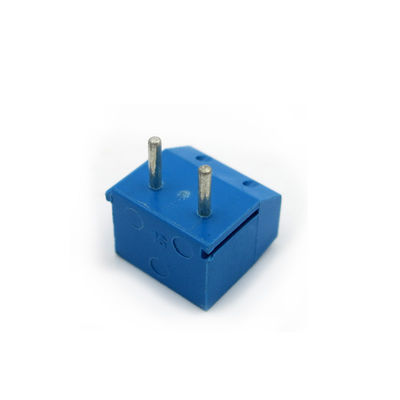

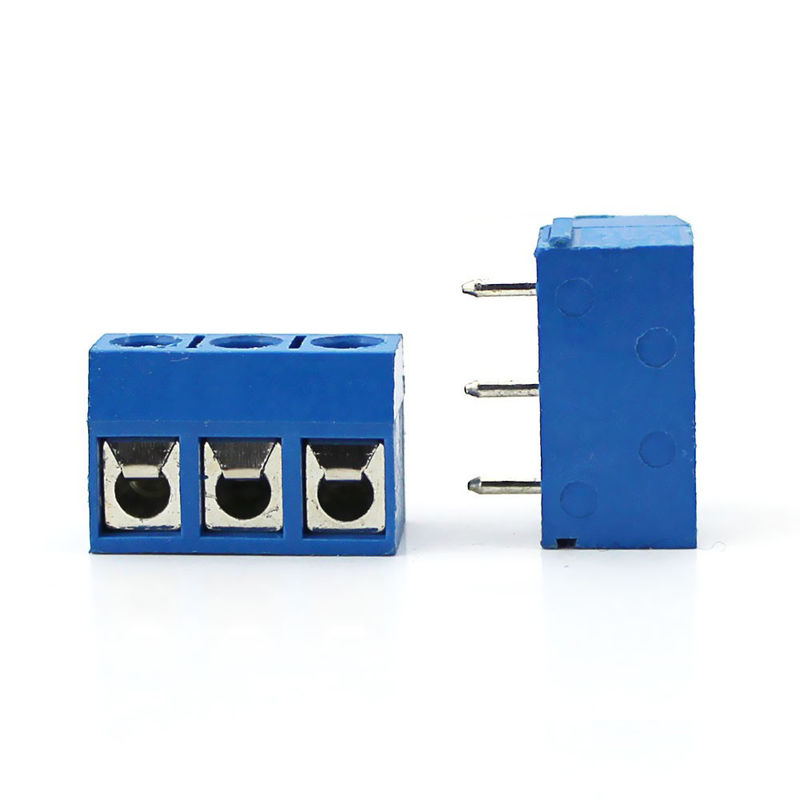

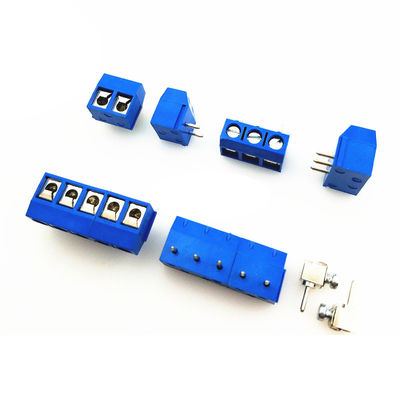

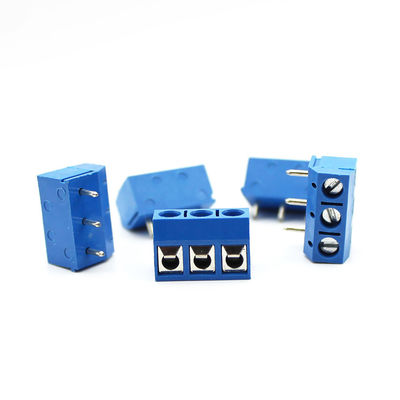

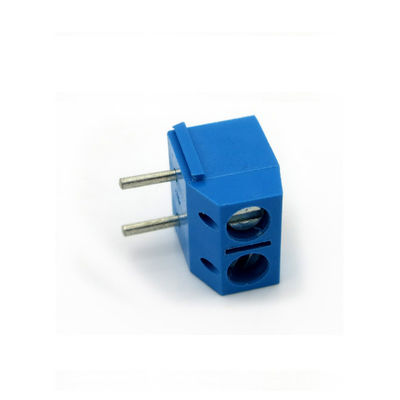

5.00mm Pitch PCB Mounted Screw Terminal Blocks Right Angle 2P to 20P Blue

5.00mm Pitch PCB Mounted Screw Terminal Blocks Right Angle 2P to 20P Blue

  • 5.00mm Pitch PCB Mounted Screw Terminal Blocks Right Angle 2P to 20P Blue
  • 5.00mm Pitch PCB Mounted Screw Terminal Blocks Right Angle 2P to 20P Blue
  • 5.00mm Pitch PCB Mounted Screw Terminal Blocks Right Angle 2P to 20P Blue
  • 5.00mm Pitch PCB Mounted Screw Terminal Blocks Right Angle 2P to 20P Blue
  • 5.00mm Pitch PCB Mounted Screw Terminal Blocks Right Angle 2P to 20P Blue
5.00mm Pitch PCB Mounted Screw Terminal Blocks Right Angle 2P to 20P Blue
Product Details:
Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: KF301R-5.00
Payment & Shipping Terms:
Minimum Order Quantity: 500 pieces
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Contact Now
Detailed Product Description
Number Of Contacts: 11 - 20 Conductor Size: 11 - 20 AWG
Type: PCB

Specifications:

Condition: Brand New
Certification: CE, Rohs
Pitch: 5.00mm
Poles: 2 Pins to 20 pins
Color:Blue
Torque: 0.2Nm
Strip length: 5-6mm
Rated voltage: 300V
Rated current:10A
Insulation resistance: 5000MΩ/1000V
Contact resistance: 20mΩ
Withstanding voltage: 2000V/1min
Wire range: 28~16AWG


Note:

The terminal blocks are in stock  from 2 poles to 20 poles
5.00mm Pitch PCB Mounted Screw Terminal Blocks Right Angle 2P to 20P Blue 0
5.00mm Pitch PCB Mounted Screw Terminal Blocks Right Angle 2P to 20P Blue 1
